3-Roller Universal Float

3-Roller Universal Float
Top-Tier Design – Suits All Watercraft

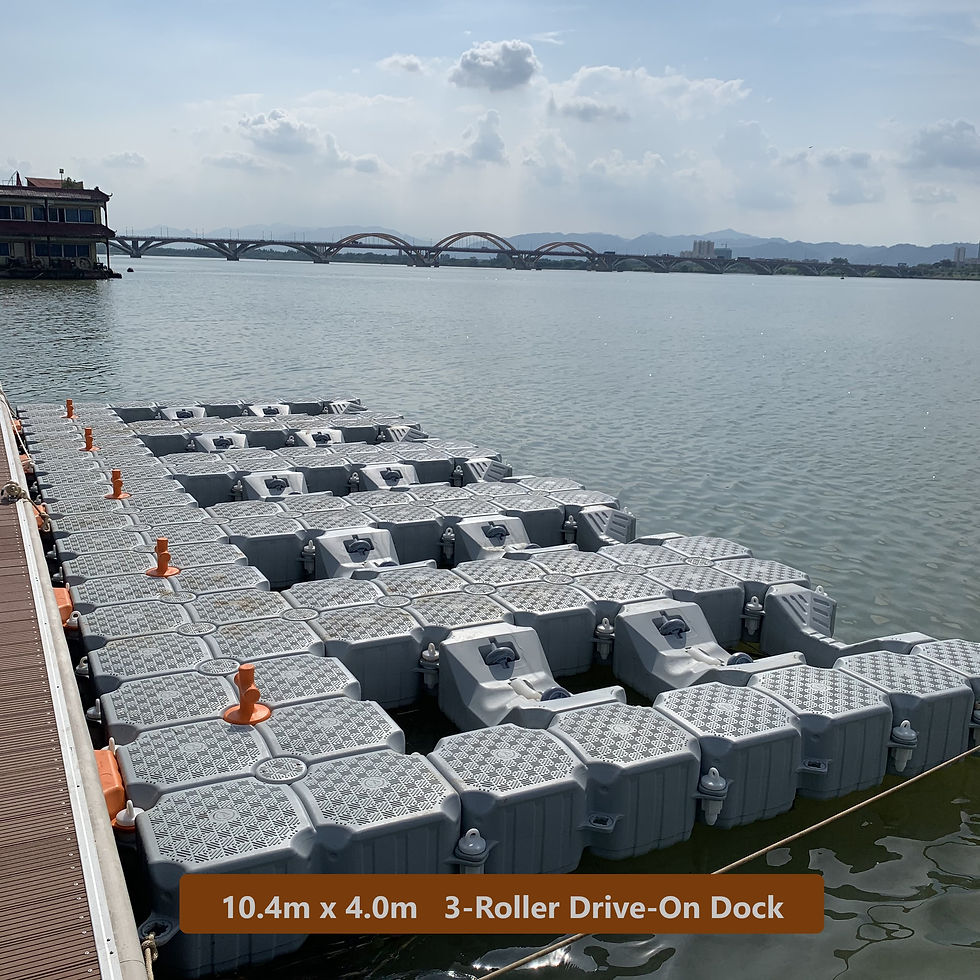

This sleek, standout 3-Roller Universal Drive-On Dock is truly in a class of its own!
With the latest in design innovation, it’s a crowd favourite across Australia. Suitable for all types of vessels up to 5000kg – from jet skis to both powered and unpowered boats, including catamarans and twin hulls – it’s the go-to solution for easy drive on/off access. Suitable for both V-Shape & U-Shape hulls.

Each robust centre float, rated to 350kg/m², features three integrated rollers, allowing for smooth and effortless launching and docking – whether under power or by hand.
The universal design of the 3-Roller float means it accommodates virtually any watercraft – no need to modify the setup when upgrading vessels.

Built to last in tough Aussie conditions, this eco-friendly, anti-slip dock is maintenance-free, simple to install, and has a life expectancy of up to 20 years.
Need flexibility? The modular system can be extended, resized, repositioned, or even removed with ease – making it ideal for changing marina or private setups.

The Grey colour 3-Roller centre floats are designed to connect exclusively with standard cube floats. Constructed from heavy-duty HDPE, this float system offers exceptional resistance to UV rays, saltwater, frost, corrosion, oil, and chemicals.

With a compression strength exceeding 1000kg/m² and a load capacity of 350kg/m², it delivers outstanding durability and performance across all seasons.

Note: This product is not available for Western Australia customers.

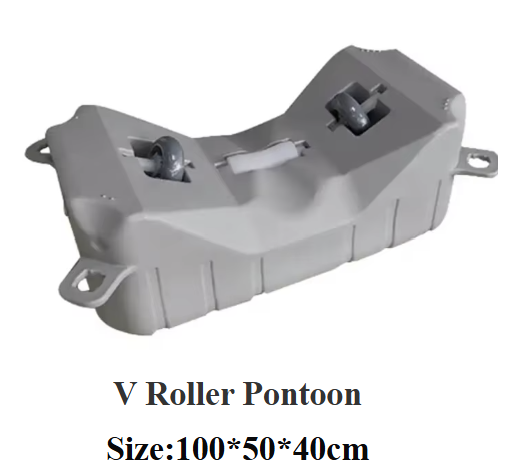

3-Roller Universal Float Specs
Size: 100 x 50 x 40 cm
Weight: 8kgs
Colour: Grey
Custom Colour: MOQ 120m2 (240pce)
Durability: Resistant to UV, frost, seawater, corrosion, and heavy impact
Safety: Anti-slip surface with rounded edges for safe, stable walkways
Flexibility: Modular design allows quick installation and easy reconfiguration
Longevity: Designed for 10–15 years of dependable use with minimal maintenance
Material: 100% high molecular weight & high-density HDPE
Pontoon buoyancy: > 350 kg/m2 - Detection method: QB 1557-1992
Diagonal tensile strength: > 27 kN - Detection method: GB/T 1040.1-2006
Compressive strength: > 40 Kn - Detection method: GB/T 8813-2008
Tensile strength: > 30 Mpa - Detection method: ASTM D638-2014
Impact strength: > 65kJ/m2 - Detection method: ASTM D256-2010

ROHS tests
The raw materials do not contain six chemicals including lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl and polybrominated diphenyl ether, making it more conducive to human health and environmental protection.

Pricing ex Depots (Floats Only)
3-Roller Universal Floats included with purchases of dock systems sold per m2
To Purchase separately: $255ea (includes shipping)
OTTOP depots in Brisbane, Melbourne, Perth, and Sydney
To Door Delivery and Other Destinations available on request

Delivery Time
Approximate lead time is 6–8 weeks

Dock Accessories
OTTOP carries the largest range of modular dock accessories in Australia
Discounts available when purchased with a dock system
Accessories also sold separately (shipping applies)

Dock Installation
DIY ready with straightforward setup
Two people can install around 50 cubes per hour
Comes with clear, step-by-step instructions
Installation available on request (service fee applies)
