East Coast 3-Roller Drive On/Off Docks

East Coast 3-Roller Drive On/Off Docks
Universal Design - All Weather – 350kgs/m2 Payload - Certified

Drive On/Off Docks with EC 3-Roller Centre Floats – Sold per m2.
Docks can be configured to any LxW in multiples of 0.5m
Includes Cubes, Centre Floats, Connections & Tools
Docks over 30m2                        =            $380 per m2
Docks 20 – 30m2                        =            $400 per m2
Docks 10 – 20m2                        =            $420 per m2
Docks under 10m2                     =            $450 per m2
Above prices are ex depots Ade, Bne, Mel, Syd, Per
To Door Delivery available on request

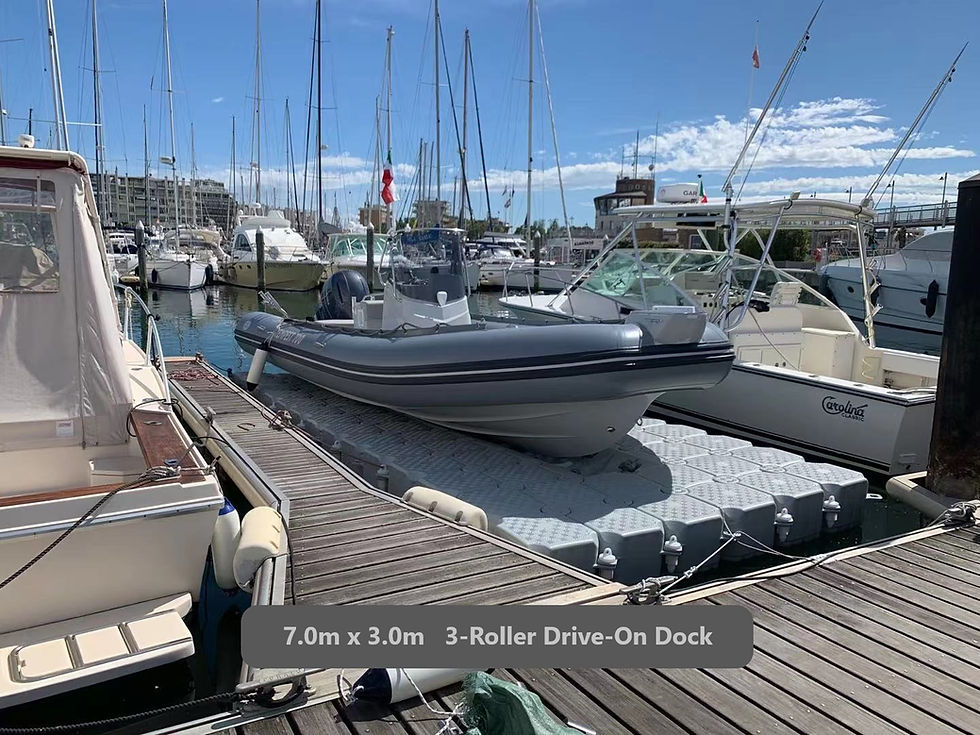

EC 3-Roller Drive On/Off Docks
This stylish eye-catching super strong & durable EC 3-Roller Centre floats each contain 3 rollers per float which enable a smooth gliding off/on passage whether using the vessel motor or with an effortless hand push.

The 3-Roller floats are a universal design to accommodate all watercraft types from Jet Skis up to 5 Tonne Vessels including Twin Hulls & Catamarans.

Ecofriendly, Anti-Slip & Maintenance Free, the all-weather 350kg/m2 payload Drive-On docks are long-lasting (20yrs) and easy to install.

Other benefits with the 3-Roller Drive-On Dock is it can be, extended, removed, & resized at any time or repositioned as is portable. The universal centre 3-roller float ensures you do not have to alter or change your Drive-On dock when you replace or upgrade your vessel.

3-Roller Centre floats can only be connected to Standard Cube types. Colour: Grey

Please Note: EC 3-Roller Centre Floats are included in the Per m2 dock prices when Purchasing a Drive On/Off dock. Below prices = If wanting to purchase individually without a dock.

FD01A - EAST COAST 3-ROLLER FLOAT
Universal Double Centre Float for All Jet Skis & Boats
Size: L100 x W50 x H40cm
Weight 13kg (+3%)
Payload 350kgs/m2
Available: QLD, NSW, VIC, SA
Price: $250 Per Float - Includes Connections

Free Design & Quotation Assistance
​Email your Vessel details or Dock Size required, and our team will configure a suitable Floating Dock option with full details, images, & videos. E: office@ottop.com.au

Drive On/Off Dock Installation
Installing Drive-On Docks is a simple & easy DIY assemble. Takes approximately 1 hour for 2 people to connect 50 cubes. The specialised tools are included & instructions are provided detailing how to assemble and connect.

Floating Docks can be assembled on land, jetty’s, and the water. They can be extended, re-shaped, re-sized and re-positioned at any time.
If unable to install, OTTOP can arrange installation for an additional fee.

Product Features
Maintenance free – Ecofriendly - Easy install - Durable – 100% Recyclable – Rounded Edges
Anti Slip - UV Resistant - Anti-Corrosion – All Weather – Marine Safe - Anti-Chemical & Oil
Certified –   Long Lasting – All Weather – Simple Reconfigurations – Portable - Lightweight
No Metal, Lead, Lead, Mercury, Polybrominated Biphenyl / Diphenyl, Cadmium, Hexavalent

Product Specifications
Moulding: Blow Moulding
Material: HDPE (High Density Polyethylene)
Material Thickness is 3-5cm.
Load capacity: 350kgs/m2
Lifespan: +15years
Certifications: ISO9001:2008, FFDA, SGS, ISO, CE, IAF, CNAS, GB
High Compression: Average 1000kg/m2
Versatility: Can Be Used Widely in Various Fields
Strength: Diagonal Lugs, tear strength 1950kgf. test speed 50mm/min.
Temperature: -60°c to +80°c
Buoyancy: Standard Cube Block Provides 95kg Lift When Fully Submerged.

Draft: Without Load Per m2/2.5-3cm - With Load 150kgs/15-20cm - With Load 300kgs/35-40cm. ​Shallow Draft: Draft of Just 25mm Unladen Allows Use in Shallow Waters.
​
Wind & Waves: 9~10 Class Wind Or 7~8 Class Waves. Wave On Water Surface - 2-class and 3-class - Safe Applicable Range. 3-class and 6-class - Applicable with Safety Protection.
6-class and 9-class - Restricted Applicable Range. Diagonal pulling force of floating pontoon: 26KN - Flat angle pulling force of pontoon: 33KN.

All products are supported with Manufacturers Quality Assurance Guarantee & Product Warranty. Please ensure you have read our Purchasing & Refunds Policy prior to purchase.

Prices Shown Are Ex OTTOP Ade / Bne / Per / Mel / Syd Depots.
TO DOOR delivery & other Destinations available on request
Delivery Time: Approx. 30 Days
