STANDARD CUBE TYPES

STANDARD CUBE TYPES

SKU: FD2201

Standard Cube Types For Floating Modular Docks

Standard - Singles – Doubles – Quad Cubes – Low Profile - Certified



All-Weather - Long Lasting 20yrs - Anti-Slip - High Buoyancy - Certified - Ecofriendly – Durable - Multifunctional - Maintenance Free - Quick & Easy DIY Assemble - 350Kg m2



Sold Per Square (m2) - Minimum Order: 10m2

Includes Standard Cubes, Centre Floats, Connections & Tools

Prices Per m2 ex OTTOP Depots - Ade, Bne, Mel, Per, Syd

To Door Delivery available on request



Cube Features

  • Can Be Configured To Create Any Size & Shape.
  • High Buoyancy 350kgs/m2.
  • Stable & Safe Passage.
  • Cubes Float In 25mm Water
  • Light Weight, Colourful & Long Lasting.
  • No Damage To Surrounding Marine Environment
  • Designed To Withstand Harsh Weather Conditions.
  • Tested & Certified By Multiple Worldwide Organisations.
  • 100% Recyclable, Ecofriendly, UV Resistant, Metal Free.
  • Maintenance Free & Multifunctional.
  • Easy & Quick To Assemble/Disassemble.
  • Can Be Constructed On Water.
  • 2 People Can Connect 50 Blocks Within An Hour.
  • Option To Extend Or Reconfigure Anytime.



Standard Cubes

The most common Cube is the Single Standard Cube – 500 x 500 x 400mm.

This cube type can be used for any floating dock type with a high payload - 350kgs per m2.

Single cube configurations offer more stability on the dock and more flexibility on the water.



Double Cubes & Low-Profile Cubes are predominately used for Large Water Projects and Floating Work & Entertainment Platforms. Double Cubes & Low-Profile Cubes offer a lower payload per m2.



Drive-On Docks are a combination of both Single Standard Cubes & Centre Floats. The Single cube can connect to any Centre Float and dock size configured to any size.



Standard Cube Colours: Blue & Grey. Customise to any colour MOQ 200 cubes.



Standard Cube Types

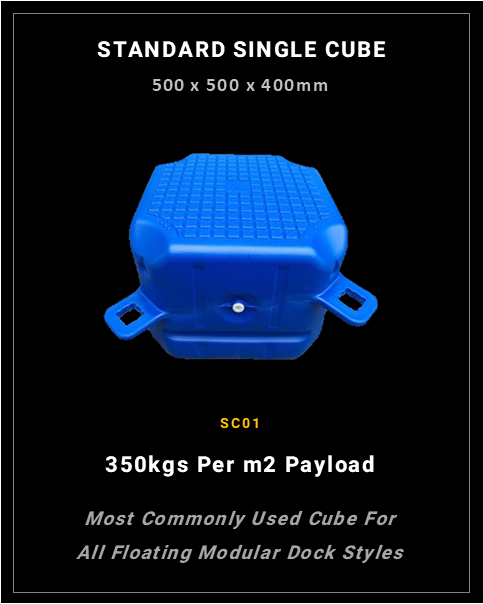

SC01 - STANDARD SINGLE CUBE

Most Popular Cube For All Floating Dock Structures

Size L50 x W50 x H40cm - Weight 7kg (+3%) - Payload 350kgs/m2

Price: $450/m2 - Includes Cubes, Connections, Tools & Centre Floats For Drive-On Docks



SC02 - SINGLE FLOODING CUBE

Standard Cube With Hole & Plug To Allow Water Filling For Drive-On Docks

Size L50 x W50 x H40cm - Weight 7kg (+3%) - Payload 350kgs/m2

Price: $450/m2 - Includes Cubes, Connections, Tools & Centre Floats For Drive-On Docks



SC03 - STANDARD DOUBLE CUBE

Economical Double Cube For Docks, Platforms & Projects

Size L100 x W50 x H40cm - Weight 11kg (+3%) - Payload 350kgs/m2

Price: $440/m2 - Includes Cubes, Connections, Tools & Centre Floats For Drive-On Docks



SC04 - SINGLE LOW-PROFILE CUBE

Low-Profile 220kgs/m2 Payload Cube For Docks & Projects

Size L50 x W50 x H25cm - Weight 5kg (+3%) - Payload 220kgs/m2

Price: $435/m2 - Includes Cubes, Connections, Tools & Centre Floats For Drive-On Docks



SC05 - DOUBLE LOW-PROFILE CUBE

Low-Profile Double Cube For Platforms & Water Projects

Size L100 x W50 x H25cm - Weight 9kg (+3%) - Payload 220kgs/m2

Price: $425/m2 - Includes Cubes, Connections, Tools & Centre Floats For Drive-On Docks



SC06 - QUAD CUBE

2M Long Standard Cube For Large Water Projects

Size L200 x W50 x H40cm - Weight 11kg (+3%) - Payload 300kgs/m2

Price: $435/m2 - Includes Cubes, Connections & Tools



Easy DIY Configurations

Each Floating Cube Block Is Designed To Interlock With All Other Blocks Including Drive-On Centre Floats. This Allows For Any Shape & Size Dock To Be Configured & Reconfigured. DIY Dock Assemble Is Simple & Quick With 2 People Able To Connect 50 Cubes In An Hour.



Free Design & Quotation Assistance

We Also Offer Free Assistance With Design & Pricing If Required.

​Email Your Dock Size Required, and/or Boat Size & Weight. Our Team Will Configure Suitable Floating Dock Options For Your Consideration.

Contact OTTOP - P: 0400 649 916 - E: office@ottop.com.au



All products are supported with Manufacturers Quality Assurance Guarantee & 5 Year Product Warranty. Please ensure you have read our Purchasing & Refunds Policy prior to purchase.



Prices Shown Are Ex OTTOP Ade / Bne / Per / Mel / Syd Depots.

TO DOOR Deliveries & Other Destinations Available On Request

Delivery Time: Approx. 24 - 28 days

  • Purchasing & Returns Policy

    Please refer to OTTOP  "Purchasing & Returns Policy"  Tab for full details

$450.00Price
