Drive On Dock Layouts

Free Dock Layout Quotes
Any Size - All Weather - +15yrs

Our drive-on/off modular floating docks are engineered to support a 350 kg/m² payload and suit all vessel types, including mono and twin hulls, up to 5,000 kg.

For a free quote, simply email your vessel model or preferred dock size, along with any required accessories. Pricing is ex OTTOP depots (Brisbane, Melbourne, Perth, Sydney). For To Door delivery, please provide your postcode for an accurate rate.

Floating Dock Features
Configuration: Customise length and width to any size or shape.
Durability: Resistant to UV, frost, seawater, corrosion, and impact.
Safety: Anti-slip surface, rounded edges, and stable walkways.
Strength: Compression load of 1,000+ kg/m²; tensile strength over 1,950 kg.
Flexibility: Modular design for simple installation and easy reconfiguration.
Sustainability: Made from 100% recyclable HDPE, environmentally friendly.
Longevity: 10–15 years of service with minimal upkeep.
Advantage: Expand or reduce dock size at any time with extra cubes.

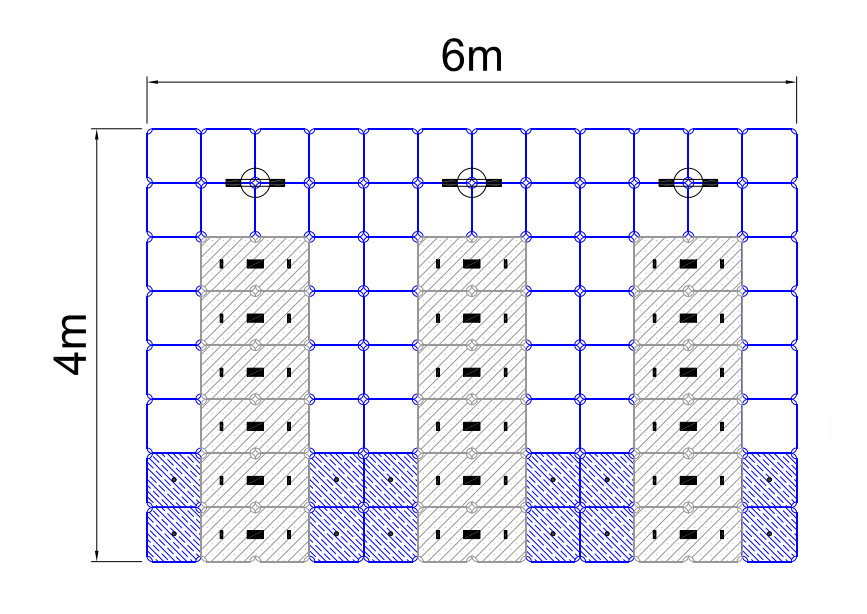

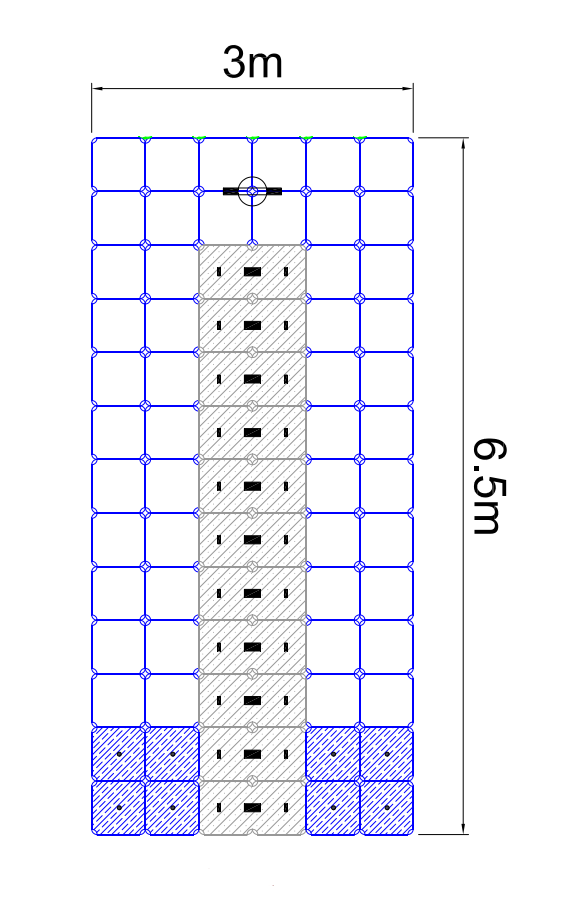

Dock Configurations
The Modular Floating Docks can be configured to any Shape & Size (multiples 0.5m).

Drive On Docks - For vessels under 5 metres long, we suggest allowing an extra metre in dock length to make sure there's enough room to safely park and secure your vessel. For boats over 5 metres, it’s best to add 1.5-2.0 metres to the overall length for safe docking.

It's also important to factor in the width of your dock. Be sure to let us know how much side space you need for moving around comfortably and handling your vessel with ease. This ensures your setup is practical, safe, and tailored to how you’ll be using it.

Included in per m2 Dock Pricing
Single Cubes – Stable base, ideal for drive-on/off docks. Colours: Blue, Grey, Orange
Flooding Cubes – Positioned first 2 rows, can be water-filled to ease vessel entry.
Centre Floats –Latest 3-Roller universal design for effortless docking.
Connections – Cube pins, side nuts/bolts, cushions, and washers included.
Tools – Pin spanner (pins), wrench (nuts/bolts), small spanner (flooding cube valves).
Bonus: Orders over 20 m² include a stainless steel bollard.

Dock Pricing per m2 (Ex Depots)
Includes Cubes, Flooding Cubes, Centre Floats, Connections & Tools
01–10 m² – $500 per m²
11–20 m² – $450 per m²
21–30 m² – $430 per m²
31–40 m² – $410 per m²
Plus 41m2 - $400 per m²
Depots: Brisbane, Melbourne, Perth, Sydney
Delivery: To Door & other destinations available on request
Delivery Time: Approx. 6–8 weeks.

Under-Dock Support Bars
Required for heavy vessels over 2,200 kg to distribute weight and prevent sagging:
2,200–3,000 kg: 3 bar sets
3,000–4,000 kg: 4 bar sets
4,000–5,000 kg: 5 bar sets

Dock Accessories
OTTOP carries the largest range of modular dock accessories in Australia
Discounts available when purchased with a dock system
Accessories also sold separately (shipping applies)

Dock Installation
DIY ready with straightforward setup
Two people can install around 50 cubes per hour
Comes with clear, step-by-step instructions
Installation available on request (service fee applies)
