Single Flooding Cube

Flooding Cubes For Drive On Docks
Curves Dock Entry – Same Size as Standard Cube

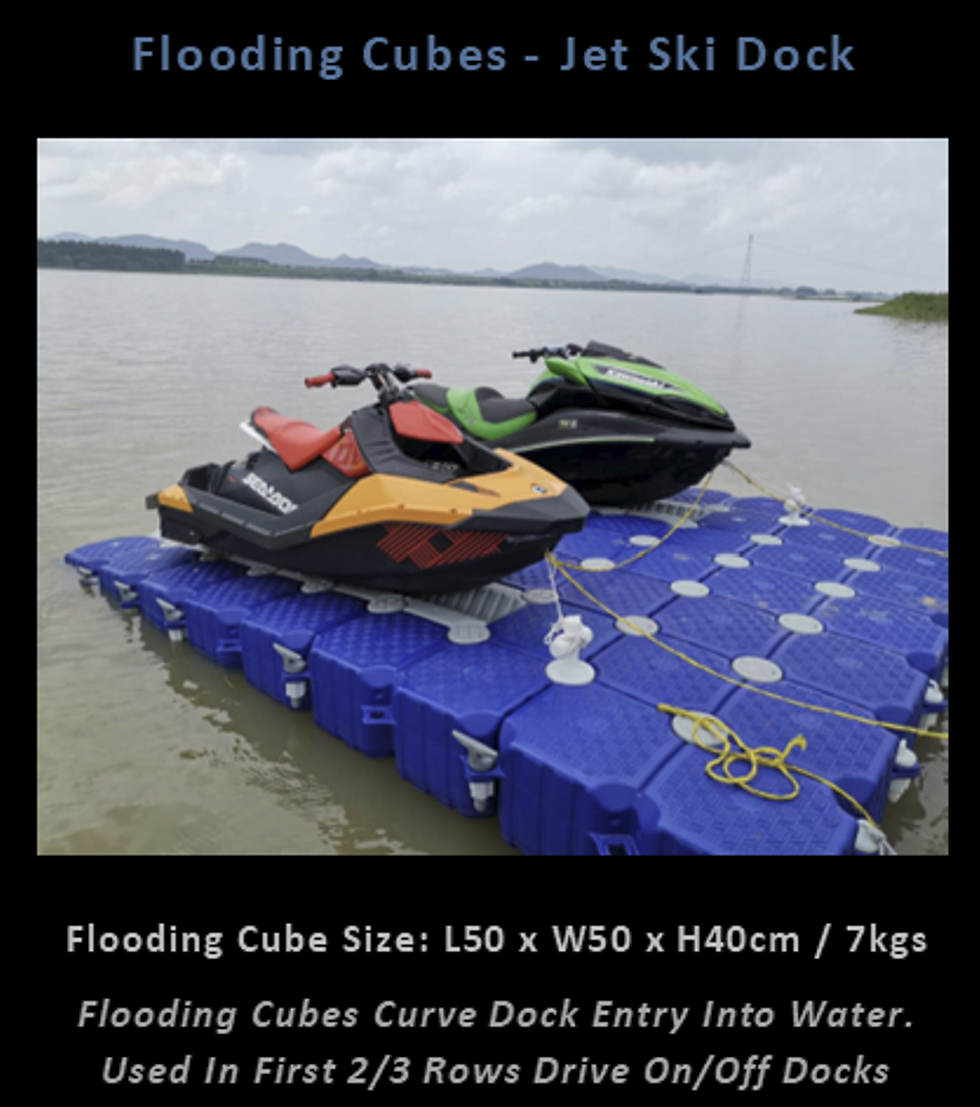

Flooding Cubes are designed to create a smoother, more natural drive-on and drive-off experience. Shown in the shaded sections of dock layout diagrams, these cubes are installed in the first two rows at the dock entry point — helping the dock gently curve into the water.

Flooding Cubes are the same size and cost as a standard single cube, making them a smart and optional upgrade for a more seamless approach.

Each cube includes two integrated valves — one on top for filling and one on the side for draining. A special tool is supplied to make it easy to fill or empty the cubes as needed. When filled with water, the cubes dip slightly below the surface to provide a more gradual angle into the dock.

Crafted from high-density polyethylene (HMWHDPE), Flooding Cubes are UV-stable, impact-resistant, and built to handle tough Aussie conditions. With a load capacity of 350 kg/m² and a working temperature range of -60°C to 80°C, they’re made for long-term use, with a lifespan of up to 15 years.

Gentle Dock Entry: Water-fill design creates a soft slope into the water.
Same Size, Same Cost: Matches standard single cube dimensions — no extra charge.
Simple Operation: Two-valve system with included tool for easy filling and emptying.
Heavy-Duty Build: 350 kg/m² load rating, resistant to UV, saltwater, and impacts.
Safe & Clean: Manufactured with hygienic materials, free from odours and residues.
Long Service Life: Durable blow-moulded construction, built to perform for 15+ years.
Custom Options Available: Colours and layout can be tailored to suit your project.

Flooding Cube Specs
Size: 50 x 50 x 40 cm
Weight: 7kgs
Colour: Blue, Grey, Orange
Custom Colour: MOQ 60m2 (240pce)
Durability: Resistant to UV, frost, seawater, corrosion, and heavy impact
Safety: Anti-slip surface with rounded edges for safe, stable walkways
Flexibility: Modular design allows quick installation and easy reconfiguration
Longevity: Designed for 10–15 years of dependable use with minimal maintenance
Material: 100% high molecular weight & high-density HDPE
Pontoon buoyancy: > 350 kg/m2 - Detection method: QB 1557-1992
Diagonal tensile strength: > 27 kN - Detection method: GB/T 1040.1-2006
Compressive strength: > 40 Kn - Detection method: GB/T 8813-2008
Tensile strength: > 30 Mpa - Detection method: ASTM D638-2014
Impact strength: > 65kJ/m2 - Detection method: ASTM D256-2010

ROHS tests
The raw materials do not contain six chemicals including lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl and polybrominated diphenyl ether, making it more conducive to human health and environmental protection.

Pricing ex Depots (Cubes Only)
Flooding Cubes included with purchases of dock systems sold per m2
To Purchase separately: $140ea (includes shipping)
OTTOP depots in Brisbane, Melbourne, Perth, and Sydney
To Door Delivery and Other Destinations available on request

Delivery Time
Approximate lead time is 6–8 weeks

Dock Accessories
OTTOP carries the largest range of modular dock accessories in Australia
Discounts available when purchased with a dock system
Accessories also sold separately (shipping applies)

Dock Installation
DIY ready with straightforward setup
Two people can install around 50 cubes per hour
Comes with clear, step-by-step instructions
Installation available on request (service fee applies)
