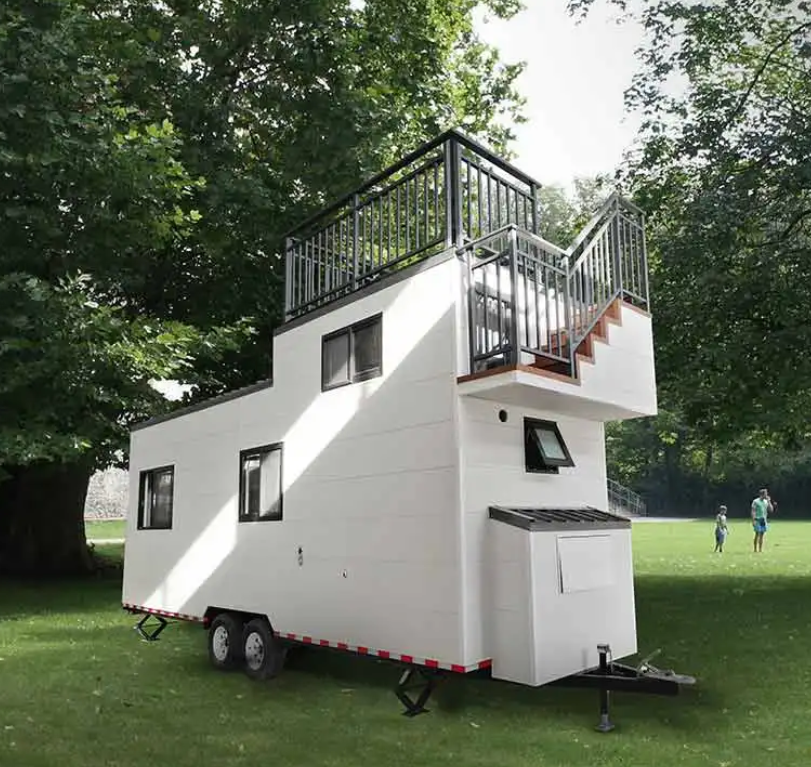

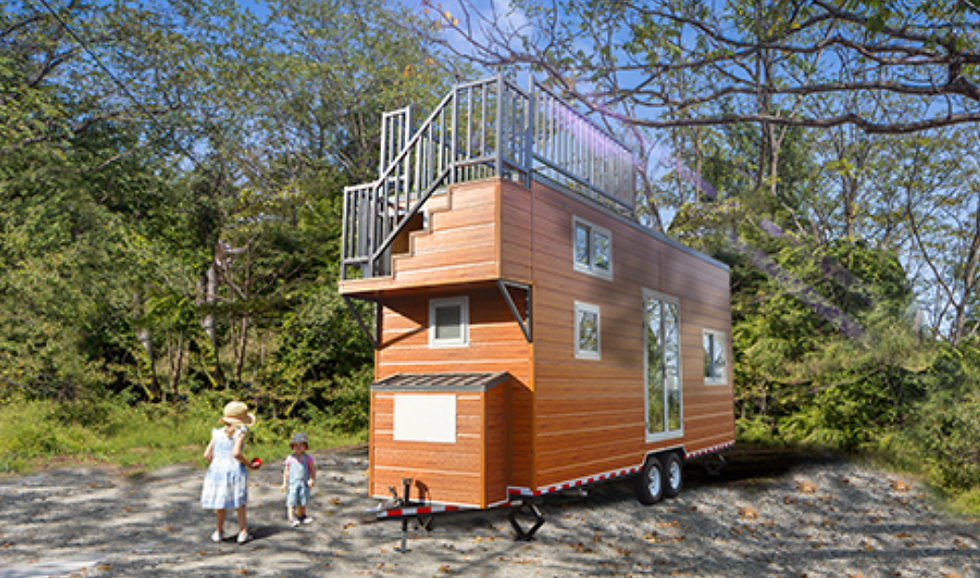

Mobile Smart Small Cabin On Wheels

Mobile Smart Small Cabin On Wheels
NZL/AU Standards - On Wheels - All Weather - Customise

Outer Size: 8.50 x 2.35 x 3.95m
Inner Size: 7.70 x 2.20 x 3.80m + 0.9m Rail
Weight: 3500kgs
Pax: 2-4 People
Colour: As per images or Customise
Other Sizes: Customise

Structure: Light steel structure
External wall: Metal PU sandwich panel, Wooden cladding
Internal wall: Integrated wall
Roof: Colorbond roof sheet
Flooring: Laminated flooring, Vinyl flooring, Wooden flooring
Kitchen: Cabinet, sink, faucet
Bathroom: Washbasin, shower, toilet
Bedroom: 1/2 beds

Structure
Painted Steel Trailer
Axle and wheel
All axles are equipped with electric brakes.

Main structure
G550GD AZ150 light steel 0.75mm
Roofing and ceiling - Roofing tile 0.5mm Colorbond Sheet
Ceiling panel 10mm Integrated Wall Panel

Exterior Wall - Cladding Board Metal-PU sandwich board 16mm
Vapor barrior 0.5mm vapor barrior
Insulation R2.5 Glasswool

Interior Wall - Internal wall cladding 10mm Integrated Wall Panel
Insulation R2.5 Glasswool

Floor
Underneath of ground floor (wet) 15mm Fiber Cement Board
Underneath of ground floor (dry) 15mm OSB board
Underneath of loft 15mm OSB board
Insulation R2.5 Glasswool
Dry area flooring 9mm MDF flooring
Bathroom flooring Vinyl flooring

Interior Finishes
Integrated Wall Panel finishing
Integraged Skirting

Windows and Doors
Exterior door (entrance) Double glazing Alum.Door
Bathroom door MDF door
Window Double glazing Alum.Window

Bathroom & Kitchen
Kitchen sink Stainless Steel Single Sink
Faucet for Kitchen Sink Hot-cold water mixer
Kitchen cabinet 18mm E0 particle board
Kitchen bench top Quartz stone bench top

Shower
Shower tray with Shower glass
Integrated shower cabin
Shower faucet

Toilet
Water toilet
Vanity set Faucet, washbasin, cabinet, mirror

Electric wires, sockets, switch
Ceiling Light Ordinary Ceiling Mounted Light
Wall Lamp
Electric Facilities - Embedded wiring, Socket,
Conduit, Switch, Outlet, Electric Box
Taillight LED, Waterproof
Extemal plug and socket Waterproof

Water Tank
Clean water tank 120L With pump
Grey water tank - Optional

Others
Embedded gas line for water heater
Embedded pipe for air conditioner

All products supported with Manufacturers Quality Assurance Guarantee & Product Warranty. Please ensure you have read our Purchasing & Refunds Policy prior to purchase.

Prices Shown Are Ex OTTOP Ade / Bne / Per / Mel / Syd Depots.
TO DOOR delivery & other Destinations available on request
Delivery Time: Approx. 5/6 Weeks
