PVC Geodesic Domes

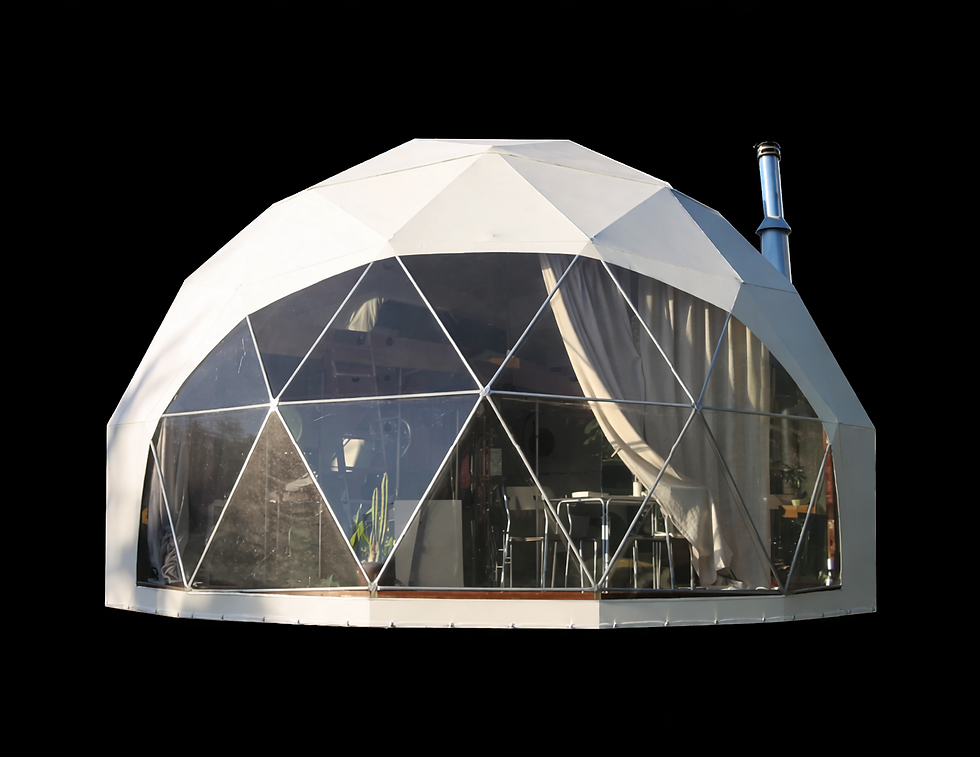

PVC Geodesic Dome
Customise – Alloy Frame – Customise

Custom Sizes: From 5m to 50m in diameter
Floorplans: Tailored to your requirements
Bathroom & Flooring: Included, Optional, Customise

PVC Geodesic Domes – Strong, Light & Built for Aussie Conditions are inspired by the clever geodesic polyhedron design – a structure made up of interlocking triangles that spread weight evenly, making them incredibly strong yet surprisingly lightweight.

Made from cost-effective, easy-to-source PVC, these domes are a top choice for all sorts of uses – from backyard greenhouses to pop-up shelters and even unique living spaces. They’re quick to set up, tough enough to handle Aussie weather, and easy on the budget.

The dome’s curved shape isn’t just good-looking – it’s smart engineering. Wind and rain flow right over it, and it can even handle a bit of snow if you’re up in the high country. That makes it a reliable option whether you’re on the coast, out bush, or anywhere in between.

Prices ex Depots (Ade, Bne, Mel, Per, Syd)
Prices start from the figures shown, with domes custom-built to customer needs.

5m Dome - 3.m High  $24,000
6m Dome - 3.m High  $26,500
7m Dome - 4m High   $28,500
8m Dome - 4m High   $30,000
Other Sizes, Destinations & To Door delivery are available upon request.
Discount applies - 2+ Geo domes per order

PVC Domes
Delivery Time: Estimated 8-10 weeks
Wind Load: Up to 100km/h
Waterproof Rating: ≥100%
UV Resistant
Temperature Range: -0°C to +70°C
Flame retardant: CAN/ULC-S109-14, NFPA701, DIN4102 B1, BS7837, M1
Certifications: CE, CFS, SGS

Frame Material (Included)
Structure: Q235 steel pipe φ26*1.5 mm (powder coated)
Durability: Environmentally friendly, scratch-resistant, and easy to clean
Frame Colours: Available in white, black, or coated finishes
Longevity: Designed to last 30+ years with minimal wear and tear

PVC Cover (Included)
30% area of 950 g/m² transparent PVC panoramic bay window
70% area of 850 g/m² double coated opaque PVC (white/dark green/beige)
Durability: Designed to last over 20 years

Entrance Door (Included)
Single rectangular metal entrance frame unit 0.9*2.1 m
Doors come with either electronic locks, key cards, or traditional keys.
Customise: Option to increase to double door, add a second access door (additional)
Smart Locks (additional)

Manual Glass Windows (Included)
Sleek Portal manual windows for easy ventilation control

Automatic Windows (Additional)
Automatic windows positioned at higher points, operated by Remote Control.

Bathroom (Included/Optional)
Our bathroom package includes a glass shower room, toilet, wash hand basin, smart mirror, & background wall.
Shower Room: Aluminium alloy frame with 8mm toughened glass
Background Wall: 50mm thick panel with optional finishes in wood grain or marble
Cooling System: Fresh air system for optimal airflow
Finish: ABS top cover, SS shower head, and integrated basin with LED lighting

SPC Floor (Included/Optional)
SPC (Stone Plastic Composite) flooring offers durability, waterproofing, and stability.
The Geodesic Dome floor is included , with option to upgrade (additional).

Foundation (Not Included)
Best Options: Reinforced concrete slab or secure decking with anchor points

Additional Extras (Additional)
Kitchenette
Bathroom
Decking WPC panel
Automatic Windows
Bio Toilet
Furniture & Fittings

For a firm quotation contact
OTTOP
P: 0400 649 916
E: office@ottop.com.au
