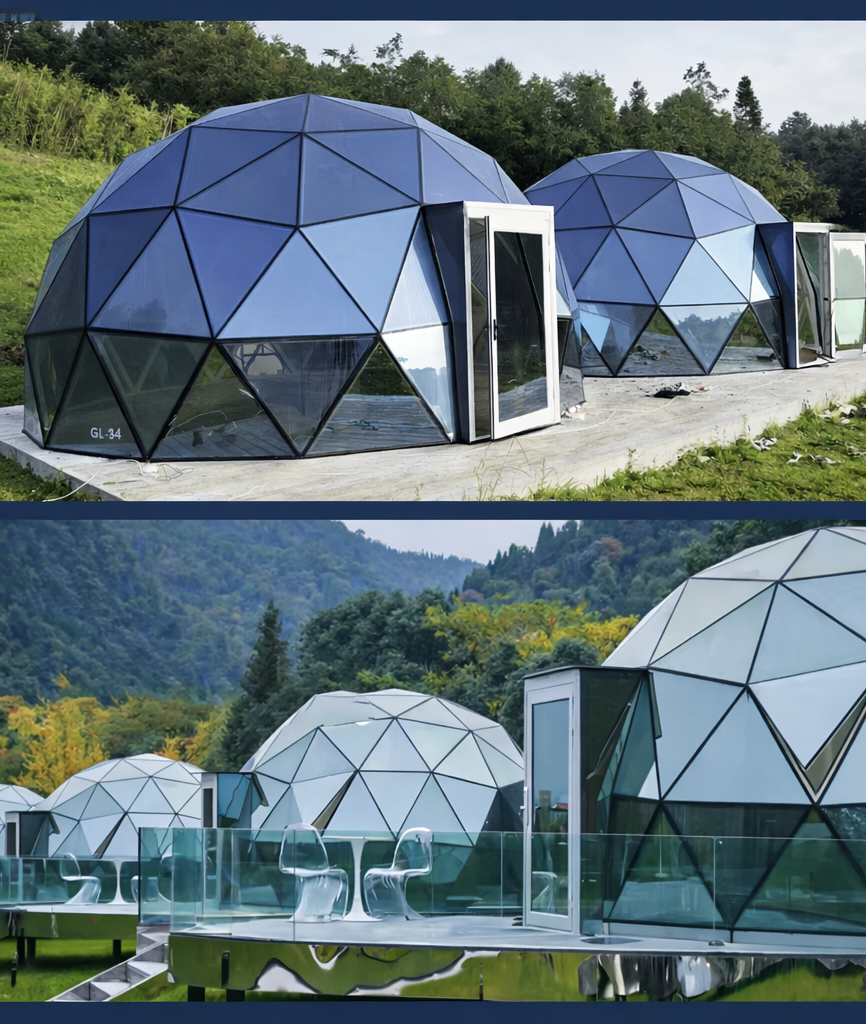

Triangle Glass Geodesic Domes

Triangle Glass Geodesic Dome
Customise – Alloy Frame – Incl Bathroom

Custom Sizes: From 5m to 50m in diameter
Floorplans: Tailored to your requirements
Bathroom & Flooring: Included, Optional, Customise

Geodesic Glass Domes  – Built to Impress, Australian Standards, quality & durability
Strong by Design - Triangle framework, rock-solid stability
Lightweight & Efficient - Big space. Minimal materials. Maximum impact
Looks That Stop Traffic - Futuristic curves. Timeless style
Sunshine & Views - Glass panels flood the space with natural light

Indicative Pricing (Ex Depots: Ade, Bne, Mel, Per, Syd)
5m Dome - 3.m High       $35,000
6m Dome - 3.5m High    $36,500
7m Dome - 4m High       $38,000
8m Dome - 4m High       $39,500
Other Sizes, Destinations & To Door delivery are available upon request.
Discount applies - 2+ Geo domes per order

Tempered Glass Domes
Delivery Time: Estimated 8-10 weeks
Wind Load: Up to 120km/h
Waterproof Rating: ≥100%
UV Resistant
Snow Load: 80kg/㎡
Temperature Range: -40°C to +70°C
Fire Resistance: BAL Certified Frame melt point 660°C / Glass melt point 600-700°C
Installation is made easy with a complete accessory kit
Certifications: CE, BAL, CFS, SGS

Frame Material (Included)
The alloy surface is oxidised for increased hardness & superior load-bearing capacity
Material: 6063-T5 Aluminium alloy
Thickness: 2mm
Durability: Environmentally friendly, scratch-resistant, and easy to clean
Frame Colours: Available in white, black, or coated finishes
Longevity: Designed to last 30+ years with minimal wear and tear

Tempered Glass (Included)
Our domes use high-quality double-tempered glass for enhanced Insulation
Thermal & Sound Insulation: Excellent thermal and soundproofing properties
Double tempered laminated glass 5mm+1.14PVB+5mm
Durability: Designed to last over 20 years
Roof Cover: 5mm tempered glass or Low E glass, UV-resistant
Glass Colours: Blue, Green, Gold, Charcoal, White, or Transparent

Glass Door (Included)
Single glass doors with alloy frame - either electronic locks, key cards, or traditional keys.
Customise: Option to upgrade to a double door for added convenience (additional)
Second Door: Option to add a second door (additional)
Smart Locks (additional)

Manual Glass Windows (Included)
Sleek triangular manual windows for easy ventilation control

Automatic Windows (Additional)
Automatic windows positioned at higher points, operated by Remote Control.

Bathroom (Included/Optional)
Our bathroom package includes a glass shower room, toilet, wash hand basin, smart mirror, & background wall.
Shower Room: Aluminium alloy frame with 8mm toughened glass
Background Wall: 50mm thick panel with optional finishes in wood grain or marble
Cooling System: Fresh air system for optimal airflow
Finish: ABS top cover, SS shower head, and integrated basin with LED lighting

SPC Floor (Included/Optional)
SPC (Stone Plastic Composite) flooring offers durability, waterproofing, and stability.
The Geodesic Dome floor is included , with option to upgrade (additional).

Foundation (Not Included)
Best Options: Reinforced concrete slab or secure decking with anchor points

Extras (Additional)
Kitchenette
Decking WPC panel
Automatic Windows
Bio Toilet
Furniture & Fittings

For a firm quotation, please contact OTTOP ADVISING.
Include your preferred size, layout, extras, colour choice, and any special requirements.
If delivery to door is required, please provide your postcode.
Discounts available on orders of 2 or more.
